Universal Milwaukee Packout Top Mounting Feet Set + Hardware Kit
Set of four mounting feet and latch to mount non-Packout items to the top of a Milwaukee Packout stack, e.g. small parts case, non-Milwaukee tools or a flat work surface.
The feet are designed to fit into the top pockets of Packout cases and the provided latch will lock into the top locking groove.
Depending on the Packout case to be mounted to, four feet can be used for one side or the full width of its top. Full instructions are provided.
To attach the feet, holes need to be drilled into the bottom of the non-Packout item.
Please note: Bolts, Nuts and Washers will protrude into the mounted item, so take this into account so as not to interfere with its contents.
You're purchasing:
Milwaukee Packout Top Mounting Feet Set
The set includes:
4 locking feet (with pre-attached double-sided tape) 1 latch lever 2 x M4 30mm Machine Screws (for lever latch) 2 x M4 Lock Nuts (for lever latch) 8 x M6 20mm Bolts 8 x M6 Square Nuts 8 x Large Washers
Colour options:
You can have them in red, black, grey, green, blue or yellow but can be customised in a different colour if needed - contact us with requirements. Please select your choice of colour from the drop down list.
Sizes:
Feet are 85mm wide, 55mm long and 12mm thick. The latch lever is 80mm long,27 wide and 13mm thick. Manufactured in strong PETG plastic.
Manufacture and materials:
The feet are 3D printed, which leaves a texture on the top surface and layer lines on the sides. The plastic used called PETG (Polyethylene Terephthalate Glycol) is a thermoplastic polyester that provides good durability, chemical resistance and excellent formability for manufacturing.
Instructions:
1. Slide the four feet all the way into the top of a Packout box. Pre-attached double-sided tape on top of each bump should be facing upwards.
2. Place the bottom of item to be mounted where you want to align it on the stack. Make sure the feet stay pushed into the top all the way. Then when you get the bottom aligned properly, press down hard to make the tape stick.
3. Slide the bottom off the stack and all the feet should stick in place. Drill a 6mm hole through each of the holes in the feet all the way through the vacuum bottom. Then insert the M6 bolts into the foot side and secure with the M6 washer and square nut on the inside of the mounted item.
For solid items such as a worktop, screws and washers are not provided so these would need to be sourced based on the thickness of the item to be mounted.

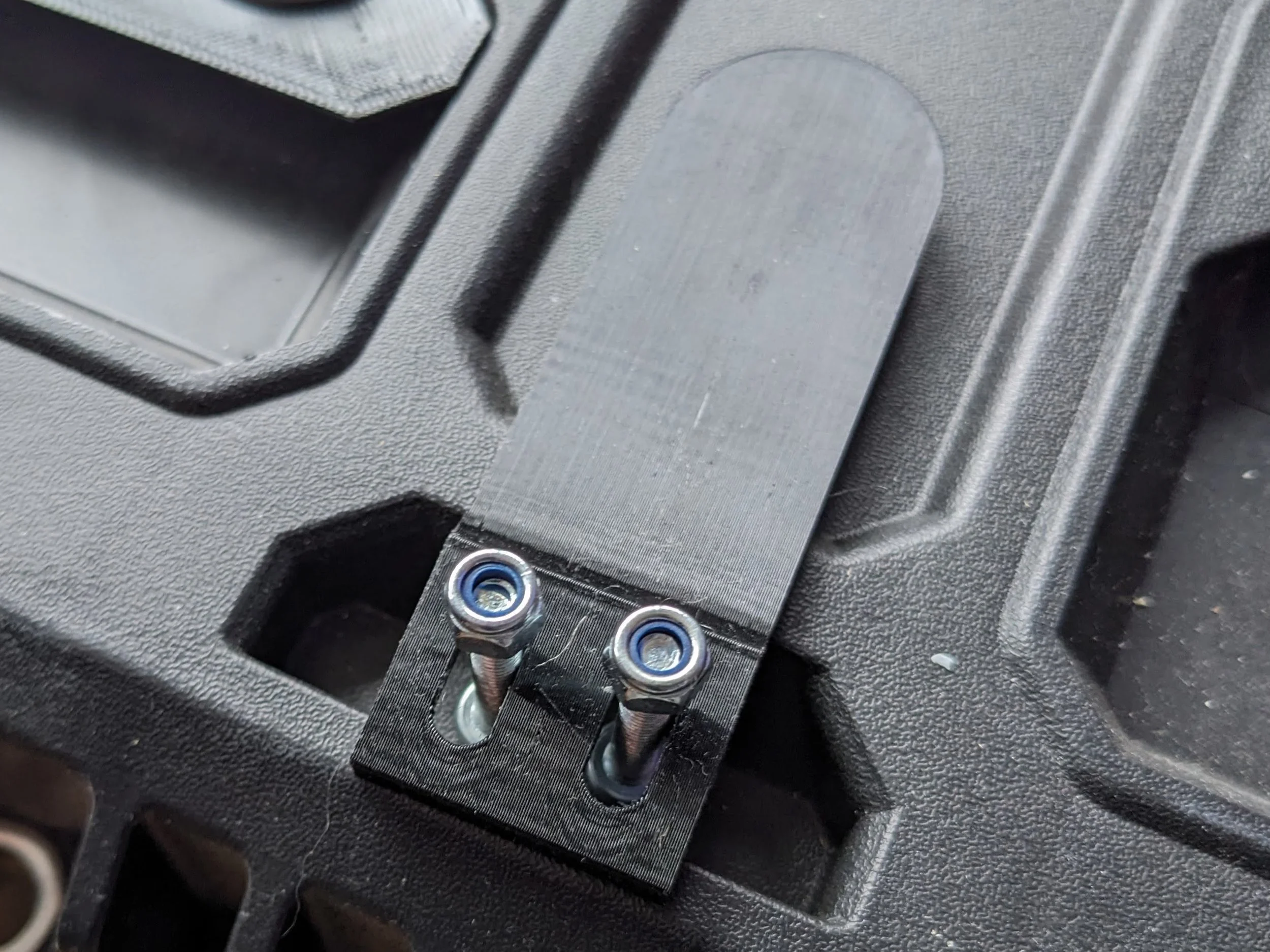

4. To align the latch lever, line it up with the bottom of the feet and drill two 4mm holes. Once you have the screws (you can cut them down to 3/4″), washers, and nuts in place, tighten them down until the lever can just slide back and forth. Move the lever so that the screws are in the centre of the slot and tighten. If the lever doesn’t latch properly you can loosen the screws and slide the lever to adjust it.
5. Use a thin thread glue such as Threadlocker to the nuts and bolts for a permanent fixing.
Postage:
Your mount(s) will be packaged in a small box to protect your order whilst on its way to you.
Orders will be posted to you second class unless the first class postage upgrade option is selected.
Please ensure you take note of our dispatch dates when placing your order and if anything is needed urgently please contact us so that we can make sure your item arrives in plenty of time.
Discounts are available for buying multiple items and we always combine postage
Based on design is from "Milwaukee Packout Feet" (https://3dprints.electronsmith.com/milwaukee-packout-feet/) by Benjamen Johnson, where it is downloadable, and is licensed under the "Creative Commons - Attribution - Share Alike" license (https://creativecommons.org/licenses/by-sa/4.0/).
Custom Milwaukee Mounts
We can design, customise and manufacture our own products so if you have a specific need for Milwaukee, battery or packout bins, mounts or adapters, contact us with your requirements and we’ll see if we can help.
Universal Milwaukee Packout Top Mounting Feet Set + Hardware Kit
Set of four mounting feet and latch to mount non-Packout items to the top of a Milwaukee Packout stack, e.g. small parts case, non-Milwaukee tools or a flat work surface.
The feet are designed to fit into the top pockets of Packout cases and the provided latch will lock into the top locking groove.
Depending on the Packout case to be mounted to, four feet can be used for one side or the full width of its top. Full instructions are provided.
To attach the feet, holes need to be drilled into the bottom of the non-Packout item.
Please note: Bolts, Nuts and Washers will protrude into the mounted item, so take this into account so as not to interfere with its contents.
You're purchasing:
Milwaukee Packout Top Mounting Feet Set
The set includes:
4 locking feet (with pre-attached double-sided tape) 1 latch lever 2 x M4 30mm Machine Screws (for lever latch) 2 x M4 Lock Nuts (for lever latch) 8 x M6 20mm Bolts 8 x M6 Square Nuts 8 x Large Washers
Colour options:
You can have them in red, black, grey, green, blue or yellow but can be customised in a different colour if needed - contact us with requirements. Please select your choice of colour from the drop down list.
Sizes:
Feet are 85mm wide, 55mm long and 12mm thick. The latch lever is 80mm long,27 wide and 13mm thick. Manufactured in strong PETG plastic.
Manufacture and materials:
The feet are 3D printed, which leaves a texture on the top surface and layer lines on the sides. The plastic used called PETG (Polyethylene Terephthalate Glycol) is a thermoplastic polyester that provides good durability, chemical resistance and excellent formability for manufacturing.
Instructions:
1. Slide the four feet all the way into the top of a Packout box. Pre-attached double-sided tape on top of each bump should be facing upwards.
2. Place the bottom of item to be mounted where you want to align it on the stack. Make sure the feet stay pushed into the top all the way. Then when you get the bottom aligned properly, press down hard to make the tape stick.
3. Slide the bottom off the stack and all the feet should stick in place. Drill a 6mm hole through each of the holes in the feet all the way through the vacuum bottom. Then insert the M6 bolts into the foot side and secure with the M6 washer and square nut on the inside of the mounted item.
For solid items such as a worktop, screws and washers are not provided so these would need to be sourced based on the thickness of the item to be mounted.
4. To align the latch lever, line it up with the bottom of the feet and drill two 4mm holes. Once you have the screws (you can cut them down to 3/4″), washers, and nuts in place, tighten them down until the lever can just slide back and forth. Move the lever so that the screws are in the centre of the slot and tighten. If the lever doesn’t latch properly you can loosen the screws and slide the lever to adjust it.
5. Use a thin thread glue such as Threadlocker to the nuts and bolts for a permanent fixing.
Postage:
Your mount(s) will be packaged in a small box to protect your order whilst on its way to you.
Orders will be posted to you second class unless the first class postage upgrade option is selected.
Please ensure you take note of our dispatch dates when placing your order and if anything is needed urgently please contact us so that we can make sure your item arrives in plenty of time.
Discounts are available for buying multiple items and we always combine postage
Based on design is from "Milwaukee Packout Feet" (https://3dprints.electronsmith.com/milwaukee-packout-feet/) by Benjamen Johnson, where it is downloadable, and is licensed under the "Creative Commons - Attribution - Share Alike" license (https://creativecommons.org/licenses/by-sa/4.0/).
Custom Milwaukee Mounts
We can design, customise and manufacture our own products so if you have a specific need for Milwaukee, battery or packout bins, mounts or adapters, contact us with your requirements and we’ll see if we can help.
Universal Milwaukee Packout Top Mounting Feet Set + Hardware Kit
Set of four mounting feet and latch to mount non-Packout items to the top of a Milwaukee Packout stack, e.g. small parts case, non-Milwaukee tools or a flat work surface.
The feet are designed to fit into the top pockets of Packout cases and the provided latch will lock into the top locking groove.
Depending on the Packout case to be mounted to, four feet can be used for one side or the full width of its top. Full instructions are provided.
To attach the feet, holes need to be drilled into the bottom of the non-Packout item.
Please note: Bolts, Nuts and Washers will protrude into the mounted item, so take this into account so as not to interfere with its contents.
You're purchasing:
Milwaukee Packout Top Mounting Feet Set
The set includes:
4 locking feet (with pre-attached double-sided tape) 1 latch lever 2 x M4 30mm Machine Screws (for lever latch) 2 x M4 Lock Nuts (for lever latch) 8 x M6 20mm Bolts 8 x M6 Square Nuts 8 x Large Washers
Colour options:
You can have them in red, black, grey, green, blue or yellow but can be customised in a different colour if needed - contact us with requirements. Please select your choice of colour from the drop down list.
Sizes:
Feet are 85mm wide, 55mm long and 12mm thick. The latch lever is 80mm long,27 wide and 13mm thick. Manufactured in strong PETG plastic.
Manufacture and materials:
The feet are 3D printed, which leaves a texture on the top surface and layer lines on the sides. The plastic used called PETG (Polyethylene Terephthalate Glycol) is a thermoplastic polyester that provides good durability, chemical resistance and excellent formability for manufacturing.
Instructions:
1. Slide the four feet all the way into the top of a Packout box. Pre-attached double-sided tape on top of each bump should be facing upwards.
2. Place the bottom of item to be mounted where you want to align it on the stack. Make sure the feet stay pushed into the top all the way. Then when you get the bottom aligned properly, press down hard to make the tape stick.
3. Slide the bottom off the stack and all the feet should stick in place. Drill a 6mm hole through each of the holes in the feet all the way through the vacuum bottom. Then insert the M6 bolts into the foot side and secure with the M6 washer and square nut on the inside of the mounted item.
For solid items such as a worktop, screws and washers are not provided so these would need to be sourced based on the thickness of the item to be mounted.
4. To align the latch lever, line it up with the bottom of the feet and drill two 4mm holes. Once you have the screws (you can cut them down to 3/4″), washers, and nuts in place, tighten them down until the lever can just slide back and forth. Move the lever so that the screws are in the centre of the slot and tighten. If the lever doesn’t latch properly you can loosen the screws and slide the lever to adjust it.
5. Use a thin thread glue such as Threadlocker to the nuts and bolts for a permanent fixing.
Postage:
Your mount(s) will be packaged in a small box to protect your order whilst on its way to you.
Orders will be posted to you second class unless the first class postage upgrade option is selected.
Please ensure you take note of our dispatch dates when placing your order and if anything is needed urgently please contact us so that we can make sure your item arrives in plenty of time.
Discounts are available for buying multiple items and we always combine postage
Based on design is from "Milwaukee Packout Feet" (https://3dprints.electronsmith.com/milwaukee-packout-feet/) by Benjamen Johnson, where it is downloadable, and is licensed under the "Creative Commons - Attribution - Share Alike" license (https://creativecommons.org/licenses/by-sa/4.0/).
Custom Milwaukee Mounts
We can design, customise and manufacture our own products so if you have a specific need for Milwaukee, battery or packout bins, mounts or adapters, contact us with your requirements and we’ll see if we can help.
